18 x 16 Mesh 0.011" Aluminum Insect Screen
  800.440.6374       Phone 360.835.7507     sales@wovenwire.com

Printable Version

More 18 x 16 Mesh 0.011" Aluminum Insect Screen is sold than any other type of insect screen specification due to the combination of durability and competitive price.  The material is superior to fiberglass in strength, easier to install and  more attractive than galvanized steel.


Product Description:

  Woven Aluminum Insect Screen Cloth


Weave Type:

  Plain Weave

Weaving Standard:

  ANSI / AWCI-01,  1992


Mesh Count:

 18 x 16

Wire Diameter:

  0.011"  (0.279mm)



  0.0445" x 0.0515"

  (1.13mm x 1.30mm)

Open Area:



  3.56 LBS/100SF


  5154 Aluminum

Material Standard:
Specification Group:

  Insect Screen Cloth

Bright Aluminum and Charcoal Aluminum Insect Screen Cloth Comparison

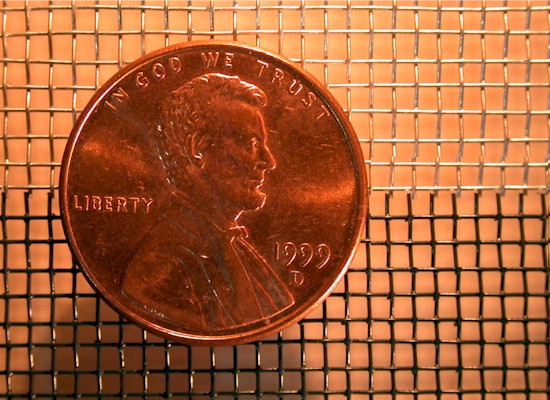

The coin (outside diameter 0.750") is shown to illustrate scale.
